Using the PDF Watermarking features from Java based environments

Posted at: 11:20 AM on 11 June 2010 by Muhimbi

Java-Logo As an ever increasing number of customers are using our PDF Conversion Services from Java based environments we have decided to make our sample code and tutorials available in Java in addition to C# / .NET. Have a look at this post for an introduction to using the PDF Conversion Web Services from Java based environments.

The C# / .net version of this post ‘Using the awesome new watermarking features of the Muhimbi PDF Converter Services’ provides a good introduction to the watermarking capabilities of our PDF Conversion products. I recommend reading it, even if you know nothing about C#, as the fundamental principles and object model are exactly the same.



The Muhimbi Document Conversion Service contains a very flexible system for applying watermarks to documents. Multiple watermarks can be applied to the same page and watermarks can be applied to page ranges or certain page types such as odd,even, portrait or landscape. In addition you can add field codes such as {PAGE} and {NUMPAGES} to dynamically add page numbers, headers and footers to PDF documents.

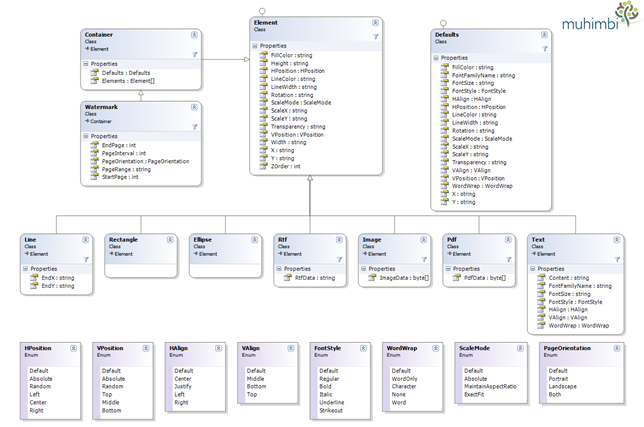

Watermarks are passed as part of the ConversionSettings object, a parameter of the Convert method. An overview of the watermarking related Web Services interface is provided below. For full details see the full User & Developer Guide.

ClassDiagram-Watermarking

The following Java based sample code is identical to a previous sample, with the exception that the Watermarks property in the ConversionSettings class is populated with a simple watermark that prints the word ‘Confidential’ on the front page in combination with the current date. Note that this sample code is automatically installed with the conversion service.

For details on how to setup your Java environment and generate the Web Service proxies see this post.


package com.muhimbi.app;

import com.muhimbi.ws.*;
import java.io.*;
import java.net.URL;
import java.util.List;
import javax.xml.bind.JAXBElement;
import javax.xml.namespace.QName;

public class WsClient {

  private final static String DOCUMENTCONVERTERSERVICE_WSDL_LOCATION =
        "http://localhost:41734/Muhimbi.DocumentConverter.WebService/?wsdl";

  public static void main(String[] args) {
    try {
      if (args.length != 1) {
        System.out.println("Please specify a single file name on the command line.");
      } else {
        // ** Process command line parameters
        String sourceDocumentPath = args[0];
        File file = new File(sourceDocumentPath);
        String fileName = getFileName(file);
        String fileExt = getFileExtension(file);

        System.out.println("Converting file " + sourceDocumentPath);

        // ** Initialise Web Service
        DocumentConverterService_Service dcss = new DocumentConverterService_Service(
            new URL(DOCUMENTCONVERTERSERVICE_WSDL_LOCATION),
            new QName("http://tempuri.org/", "DocumentConverterService"));
        DocumentConverterService dcs = dcss.getBasicHttpBindingDocumentConverterService();

        // ** Only call conversion if file extension is supported
        if (isFileExtensionSupported(fileExt, dcs)) {
          // ** Read source file from disk
          byte[] fileContent = readFile(sourceDocumentPath);

          // ** Converting the file
          OpenOptions openOptions = getOpenOptions(fileName, fileExt);
          ConversionSettings conversionSettings = getConversionSettings();
          byte[] convertedFile = dcs.convert(fileContent, openOptions, conversionSettings);

          // ** Writing converted file to file system
          String destinationDocumentPath = getPDFDocumentPath(file);
          writeFile(convertedFile, destinationDocumentPath);
          System.out.println("File converted sucessfully to " + destinationDocumentPath);

        } else {
          System.out.println("The file extension is not supported.");
        }
      }

    } catch (IOException e) {
      System.out.println(e.getMessage());
    } catch (DocumentConverterServiceGetConfigurationWebServiceFaultExceptionFaultFaultMessage e) {
      printException(e.getFaultInfo());
    } catch (DocumentConverterServiceConvertWebServiceFaultExceptionFaultFaultMessage e) {
      printException(e.getFaultInfo());
    }
  }

  public static OpenOptions getOpenOptions(String fileName, String fileExtension) {
    ObjectFactory objectFactory = new ObjectFactory();
    OpenOptions openOptions = new OpenOptions();
    // ** Set the minimum required open options. Additional options are available
    openOptions.setOriginalFileName(objectFactory.createOpenOptionsOriginalFileName(fileName));
    openOptions.setFileExtension(objectFactory.createOpenOptionsFileExtension(fileExtension));
    return openOptions;
  }

  public static ConversionSettings getConversionSettings() {
    ConversionSettings conversionSettings = new ConversionSettings();
    // ** Set the minimum required conversion settings. Additional settings are available
    conversionSettings.setQuality(ConversionQuality.OPTIMIZE_FOR_PRINT);
    conversionSettings.setRange(ConversionRange.ALL_DOCUMENTS);
    conversionSettings.getFidelity().add("Full");
    conversionSettings.setFormat(OutputFormat.PDF);
    conversionSettings.setWatermarks(getWatermarks());
    return conversionSettings;
  }

  public static JAXBElement<ArrayOfWatermark> getWatermarks()
  {
    ObjectFactory objectFactory = new ObjectFactory();
    ArrayOfWatermark watermarks = new ArrayOfWatermark();

    // ** Specify some of the default settings for properties
    Defaults wmDefaults = new Defaults();
    wmDefaults.setFillColor(objectFactory.createDefaultsFillColor("#FF0000"));
    wmDefaults.setFontFamilyName(objectFactory.createDefaultsFontFamilyName("Arial"));

    // ** 'Confidential' watermark for front page
    Watermark confidential = new Watermark();
    confidential.setDefaults(objectFactory.createContainerDefaults(wmDefaults));
    confidential.setStartPage(1);
    confidential.setEndPage(1);
    confidential.setRotation(objectFactory.createElementRotation("-15"));
    confidential.setWidth(objectFactory.createElementWidth("500"));
    confidential.setHeight(objectFactory.createElementHeight("250"));
    confidential.setHPosition(HPosition.CENTER);
    confidential.setVPosition(VPosition.ABSOLUTE);
    confidential.setY(objectFactory.createElementY("275"));
    confidential.setZOrder(-1);

    // ** Create a new Text element that goes inside the watermark
    Text cfText = new Text();
    cfText.setContent(objectFactory.createTextContent("Confidential - {DATE}"));
    cfText.setFontSize(objectFactory.createTextFontSize("40"));
    cfText.getFontStyle().add("Bold");
    cfText.getFontStyle().add("Italic");
    cfText.setWidth(objectFactory.createElementWidth("500"));
    cfText.setHeight(objectFactory.createElementHeight("250"));
    cfText.setTransparency(objectFactory.createElementTransparency("0.10"));

    // ** And add it to the list of watermark elements.
    ArrayOfElement cfElements = new ArrayOfElement();
    cfElements.getElement().add(cfText);
    confidential.setElements(objectFactory.createContainerElements(cfElements));

    // ** And add the watermark to the list of watermarks
    watermarks.getWatermark().add(confidential);

    return objectFactory.createConversionSettingsWatermarks(watermarks);
  }

  public static String getFileName(File file) {
    String fileName = file.getName();
    return fileName.substring(0, fileName.lastIndexOf('.'));
  }

  public static String getFileExtension(File file) {
    String fileName = file.getName();
    return fileName.substring(fileName.lastIndexOf('.') + 1, fileName.length());
  }

  public static String getPDFDocumentPath(File file) {
    String fileName = getFileName(file);
    String folder = file.getParent();
    if (folder == null) {
      folder = new File(file.getAbsolutePath()).getParent();
    }
    return folder + File.separatorChar + fileName + '.' + OutputFormat.PDF.value();
  }

  public static byte[] readFile(String filepath) throws IOException {
    File file = new File(filepath);
    InputStream is = new FileInputStream(file);
    long length = file.length();
    byte[] bytes = new byte[(int) length];

    int offset = 0;
    int numRead;
    while (offset < bytes.length && (numRead = is.read(bytes, offset, bytes.length - offset)) >= 0) {
      offset += numRead;
    }

    if (offset < bytes.length) {
      throw new IOException("Could not completely read file " + file.getName());
    }
    is.close();
    return bytes;
  }

  public static void writeFile(byte[] fileContent, String filepath) throws IOException {
    OutputStream os = new FileOutputStream(filepath);
    os.write(fileContent);
    os.close();
  }

  public static boolean isFileExtensionSupported(String extension, DocumentConverterService dcs)
    throws DocumentConverterServiceGetConfigurationWebServiceFaultExceptionFaultFaultMessage
    {
      Configuration configuration = dcs.getConfiguration();
      final JAXBElement<ArrayOfConverterConfiguration> converters = configuration.getConverters();
      final ArrayOfConverterConfiguration ofConverterConfiguration = converters.getValue();
      final List<ConverterConfiguration> cList = ofConverterConfiguration.getConverterConfiguration();

      for (ConverterConfiguration cc : cList) {
        final List<String> supportedExtension = cc.getSupportedFileExtensions().getValue().getString();
        if (supportedExtension.contains(extension)) {
          return true;
        }
    }

    return false;
  }

  public static void printException(WebServiceFaultException serviceFaultException) {
    System.out.println(serviceFaultException.getExceptionType());
    JAXBElement<ArrayOfstring> element = serviceFaultException.getExceptionDetails();
    ArrayOfstring value = element.getValue();
    for (String msg : value.getString()) {
      System.out.println(msg);
    }
  }

}
